Reservoir Characterization: An Essential Guide for Oil and Gas Exploration

Subsurface Dynamics is an independent engineering and geoscience consulting firm with extensive experience in reservoir characterization, modeling and simulation.  We provide a full spectrum of engineering and geophysical services from data acquisition to final data integration and full field development programs.

Mastering reservoir characterization is not just an advantage in the world of oil and gas exploration; it’s a necessity. This compelling process has the power to illuminate what lies beneath the Earth’s surface, providing crucial insights required for effective development.

With accurate reservoir characterization, we can unlock more precise methods of resource extraction, revolutionize reservoir recovery strategies, reduce environmental impact and drive-up profitability.

Reservoir characterization is the process of obtaining detailed information about a subsurface reservoir, including its size, shape, location, and fluid content. This involves combining multiple sources of data, such as seismic surveys, well logs, and geological studies, to develop an accurate understanding of the reservoir’s geology and potential production capabilities.

Accurately characterizing a reservoir is crucial for optimizing production and maximizing recovery while minimizing costs. At Subsurface Dynamics, our team of engineers specializes in providing comprehensive reservoir characterization services utilizing the latest technology and industry best practices.

Reservoir Characterization Overview

Reservoir characterization is a critical aspect of the oil and gas exploration process, playing a fundamental role in understanding the properties and behavior of subsurface reservoirs. It involves the comprehensive assessment and description of various geological and engineering aspects to optimize hydrocarbon recovery.

By combining geological interpretation, geostatistics, rock physics, and fluid flow models, reservoir characterization provides valuable insights into the distribution, heterogeneity, and potential productivity of reservoirs.

The main objective of reservoir characterization is to understand key lithology-related properties that are relevant for understanding reservoir conditions. This dynamic process requires continuous updating as new data becomes available throughout the lifespan of the reservoir.

To achieve comprehensive reservoir characterization, a multi-disciplinary approach is typically employed. This involves integrating geological, petrophysical, geophysical, and engineering data to develop accurate models that capture the complexities and uncertainties of the subsurface environment.

Reservoir engineers work closely with geoscientists to ensure that the static model adequately represents the variability in lithology, porosity, permeability, fluid saturation, and geomechanical properties.

One of the primary goals of reservoir characterization is to identify potential flow units within a reservoir. These flow units are regions with similar geological characteristics that exhibit consistent fluid flow behavior. Determining these flow units is crucial for developing efficient production strategies and designing optimized well placement patterns.

To get a better understanding of reservoir characterization concept, let’s discuss essential data types used in this process.

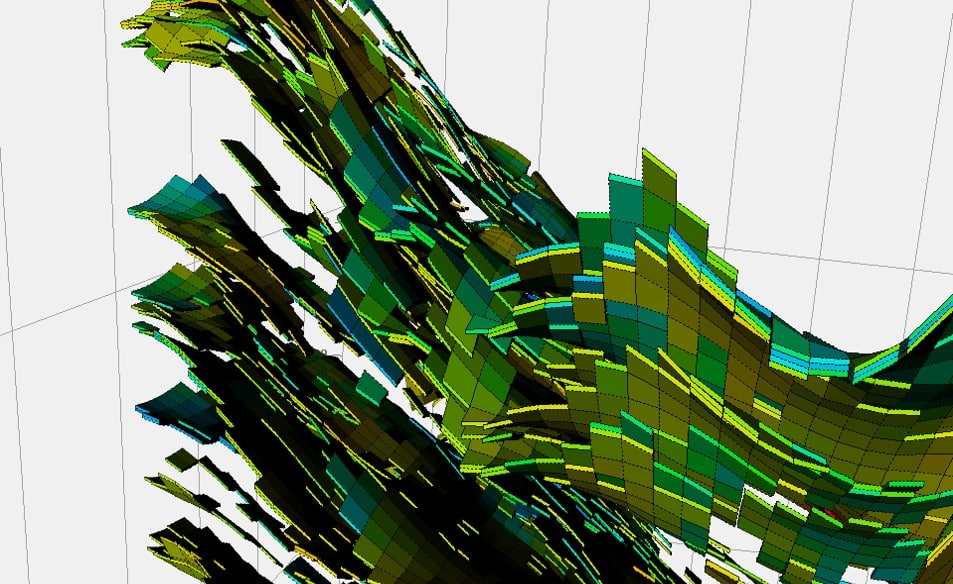

Reservoir characterization 4
Reservoir Characterization: An Essential Guide for Oil and Gas Exploration 4

Essential Data Types for Reservoir Characterization

Reservoir characterization relies on various types of data to build accurate geological models and make informed decisions regarding reservoir development and management. Understanding these essential data types is vital for successful characterization efforts.

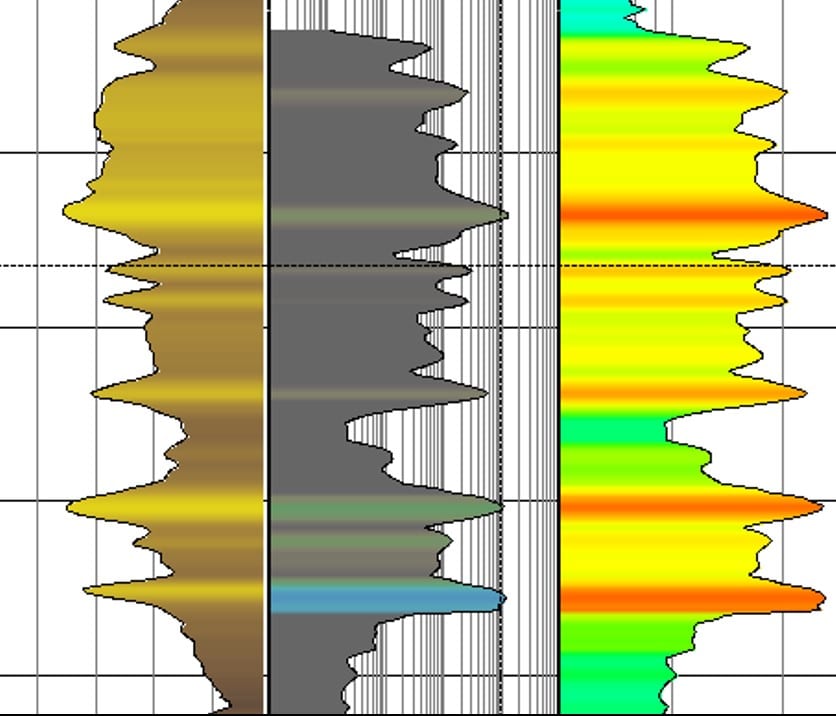

1. Well Logs

Well logs provide detailed information about subsurface formations encountered during drilling operations. They include measurements of electrical resistivity, natural gamma radiation, acoustic properties, and others. These measurements allow geologist to evaluate lithology, identify hydrocarbon-bearing zones, estimate porosity and permeability, as well as calibrate seismic data.

2. Seismic Data

Seismic data plays an integral role in reservoir characterization. It involves the reflection of sound waves into the subsurface and the analysis of their travel times and amplitudes to construct geologic structures. By interpreting seismic data, geoscientists can identify faults, folds, stratigraphic layers, and potential hydrocarbon reservoirs. Advanced techniques like seismic inversion can further extract valuable information regarding rock properties.

3. Core Samples

Obtaining core samples by extracting cylindrical sections of rock from wells provides direct measurements of reservoir properties. These samples undergo careful analysis in laboratories to determine parameters such as porosity, permeability, fluid saturation, and rock composition. Core data is essential for calibrating other geological and petrophysical measurements.

4. Fluid Analysis

Fluid samples obtained from wells are analyzed to determine their composition and behavior under reservoir conditions. This includes measuring the presence of hydrocarbons, water content, viscosity, gas-oil ratio (GOR), and other parameters that affect fluid flow characteristics within the reservoir.

5. Production Data

Historical production data from existing wells within a reservoir provide valuable insights into its behavior over time. Parameters such as well rates, pressure profiles, decline curves, and recovery factors are analyzed to understand reservoir performance trends and optimize future production strategies.

Production data is also used in detailed characterization techniques including rate-transient analysis and flow simulation.

Understanding and integrating all these essential data types for reservoir characterization allow industry professionals to make informed decisions during exploration and production phases.

By combining these various datasets using advanced software tools and techniques, accurate geological models can be developed that capture the complexities of the subsurface environment.

Reservoir characterization 3
Reservoir Characterization: An Essential Guide for Oil and Gas Exploration 5

Techniques in Physical and Geological Characterization

When it comes to reservoir characterization, the use of various techniques in physical and geological characterization plays a paramount role in understanding the subsurface properties of oil and gas reservoirs. These techniques allow geoscientists to gain valuable insights into rock composition, structure, porosity, and permeability.

1. Core Analysis

One such technique is core analysis, where rock core samples extracted from the reservoir are analyzed in a laboratory setting. Core analysis provides information about the rock’s physical properties, such as porosity and permeability, which are essential factors for determining reservoir productivity.

By studying these samples, geoscientists can also identify mineralogical composition and sedimentary structures that give clues about depositional environments and diagenetic processes.

For example, percentage of clay minerals can be estimated from a core sample extracted from a sandstone reservoir which can impact the productivity.

2. Well Logging

Another technique widely used is well logging. This involves the measurement of various physical properties of the formation surrounding the wellbore using downhole tools.

The data obtained from well logging can provide valuable information about lithology, fluid content, porosity, permeability, and even hydrocarbon saturation.

This information enables geoscientists to construct detailed models of the subsurface structure.

3. Seismic

Additionally, seismic reflection is a powerful method used for imaging subsurface structures. It involves sending sound waves (or seismic waves) into the earth’s subsurface and recording the reflections that bounce back.

This data provides valuable insights into the subsurface architecture, including fault systems, stratigraphic layering, and potential hydrocarbon traps.

With advanced seismic acquisition techniques like 3D and 4D seismic surveys, geoscientists can create detailed images of reservoirs at different depths and time intervals, enhancing the accuracy of reservoir characterization.

Next, we will discuss the role and importance of collecting imaging data in the reservoir characterization process.

Role of Imaging in the Characterization Process

Imaging techniques are essential tools in reservoir characterization as they enable geoscientists to visualize and understand subsurface structures and properties. These techniques provide crucial data for identifying potential hydrocarbon reserves, delineating reservoir boundaries, and assessing reservoir quality.

One widely used imaging technique is seismic imaging, which utilizes seismic waves to create detailed images of the subsurface. By analyzing seismic data, geoscientists can map structural features, identify faults and fractures, and estimate rock properties such as porosity and fluid content.

This information aids in making informed decisions about drilling locations and optimizing production strategies.

Another important imaging tool is electromagnetic (EM) imaging. This technique measures electromagnetic fields to detect variations in electrical properties, giving insights into hydrocarbon presence, lithology, and fluid distribution.

EM imaging can be particularly useful in unconventional reservoirs where traditional seismic methods may be limited.

Reservoir characterization
Reservoir Characterization: An Essential Guide for Oil and Gas Exploration 6

Additionally, resistivity imaging is a technique that measures subsurface resistivity variations using electrical currents. By analyzing these variations, geoscientists can infer lithology changes, fluid saturations, and permeability distributions within the reservoir.

This information is vital for understanding fluid flow patterns and maximizing hydrocarbon recovery.

Furthermore, X-ray computed tomography (CT) scanning is employed to capture high-resolution 3D images of core samples. This non-destructive technique allows geoscientists to study the internal structure, porosity, and mineralogy of rocks in detail.

For instance, when analyzing a CT scan of a limestone core sample, the high-resolution images reveal intricate pore networks embedded within the rock matrix, providing crucial information about permeability and fluid flow pathways.

As mentioned earlier, imaging techniques play a pivotal role in visualizing underground structures and understanding reservoir properties. By incorporating these methods into the reservoir characterization process, geoscientists and petroleum engineers can make informed decisions that optimize oil and gas exploration and production.

  • According to research conducted by the American Association of Petroleum Geologists, more than 60% of oil fields globally rely on accurate reservoir characterization for enhanced oil recovery methods.
  • A study published by the Society of Petroleum Engineers revealed that comprehensive reservoir characterization has been found to increase production efficiency by up to 30%.
  • Research data published in Energy Sources Journal in 2020 showed that approximately 40% of brownfields or mature oilfields have seen an increased economic lifespan through advanced reservoir characterization techniques.

Incorporating Seismic Data in Reservoir Analysis

In the field of petroleum exploration, reservoir analysis is a critical step in understanding the characteristics and potential of an underground reservoir. One invaluable source of information that plays a significant role in this analysis is seismic data.

Seismic data provides detailed insights into the subsurface, helping geoscientists gain a better understanding of the rock and fluid conditions within the reservoir.

Data is collected using seismic surveys, where sound waves are generated at the surface and recorded as they propagate through the subsurface. By analyzing the travel times and reflections of these sound waves, geoscientists can discern important geological features such as fault lines, stratigraphic layers, or even hydrocarbon-bearing zones.

This information aids in delineating the boundaries of a reservoir, identifying potential drilling locations, and estimating reserves.

Integrating seismic data with other sources of information such as well logs can provide a more comprehensive picture of the reservoir. Well logs offer valuable insights into parameters like porosity, lithology, and permeability at specific depths within the wellbore.

By correlating seismic data with well log data, geoscientists can extrapolate these properties laterally across the reservoir, improving the accuracy of their models.

Seismic attributes are also utilized to estimate crucial parameters like porosity and p-wave velocity within a reservoir. These attributes capture variations in seismic amplitudes, frequencies, or angles to map subsurface properties indirectly.

Researchers have developed regression methods, including single attribute analysis, multi-attribute analysis, and neural networks to establish logical-mathematical relationships between these attributes and porosity or p-wave velocity.

This allows for better estimation accuracy and aids in understanding lateral changes in reservoir properties.

For instance, if there is an oil field located along a fault line or beneath a salt dome, seismic can assist in identifying these geological features. This allows geoscientists to better understand how these features affect the distribution and movement of hydrocarbons inside the reservoir.

As a result, development of this field can be optimized, and greater production will be achieved.

Evaluating Reservoir Through Numerical Modeling

Reservoir evaluation plays a pivotal role in predicting fluid behavior, optimizing oil and gas recovery, and making informed decisions during field development. One powerful technique for reservoir evaluation is numerical modeling.

This approach involves constructing computer-based models that simulate various physical and chemical processes occurring within the reservoir.

Numerical modeling allows engineers to visualize the subsurface environment, study fluid dynamics, and come up with ideas to improve production efficiency.

These models consider parameters such as rock properties, fluid characteristics, flow rates, pressure differentials, and well configurations to accurately represent the complex interactions taking place beneath the surface.

These models can be used to evaluate different scenarios and predict reservoir performance under varying conditions. For instance, engineers can simulate waterflooding techniques to assess their effectiveness in enhancing oil recovery or analyze the impact of different well completion strategies on production rates.

By simulating fluid flow and pressure behavior over time, numerical models enable decision-makers to optimize production schedules and design cost-effective field development plans.

It’s important to note that building an accurate numerical model requires a robust understanding of both the geological structures within the reservoir and the fluid properties. This requires careful integration of various data sources such as well logs, core samples, and production history.

Numerical modeling techniques have been widely applied across various reservoir types, including heavy oil, shale gas, and unconventional resources. Researchers have utilized techniques such as numerical simulation, deep learning algorithms, panel data modeling, and geomechanical models to gain insights into optimizing reservoir development and improving estimation precision.

Numerical modeling can be compared to a virtual environment where petroleum engineers can perform experiments and analyze various hypotheses without changing the reservoir. This enables them to outline and explore a wide range of options and make data driven decision that yields the greatest oil and gas recovery.

By utilizing reservoir simulation and numerical modeling, engineers can unlock the full potential of hydrocarbon resources by minimizing uncertainties associated with the subsurface environment. These techniques provide valuable insights into reservoir behavior, guide decision-making processes, and contribute to the efficient and sustainable development of oil and gas fields.

Adopting Formation Evaluation Techniques

Formation evaluation, which is a critical component of reservoir characterization, involves the assessment and analysis of subsurface formations to determine their composition, fluid content, porosity, permeability, and other essential properties.

By adopting formation evaluation techniques, exploration teams can gain valuable insights into potential reservoirs and make informed decisions regarding drilling strategies and production.

One commonly used technique in formation evaluation is well logging. Well logging involves the use of logging tools that are lowered into the wellbore to measure various parameters such as electrical resistivity, gamma ray absorption, and acoustic velocity.

These measurements help in identifying different rock types, estimating fluid saturation levels, detecting potential hydrocarbon zones, and assessing reservoir quality. Well logging provides real-time data that aids in understanding the geologic formations encountered during drilling operations.

For instance, imagine an exploration team drilling a well in an offshore field. As they lower the logging tools into the wellbore, they collect data on the electrical resistivity of the surrounding rocks.

Based on this data, they identify a zone with high resistivity values which could indicate the presence of hydrocarbons. The team can then adjust their drilling plans accordingly.

Another technique used in formation evaluation is core analysis. Core samples are extracted from the reservoir formations during drilling operations and analyzed in laboratories.

Core analysis helps in determining rock properties such as porosity, permeability, mineralogy, and geomechanical characteristics. This information is crucial for understanding fluid flow behavior within the reservoir and evaluating its production potential.

In addition to these techniques, advanced technologies like seismic imaging and hydraulic fracturing analysis also contribute to formation evaluation. Seismic imaging uses sound waves to create detailed images of subsurface formations, helping identify potential reservoirs and structural features.

Hydraulic fracturing analysis assesses the effectiveness of hydraulic fracturing operations by monitoring fracture propagation and conductivity. Flowback data analysis can be utilized on horizontal and vertical wells to estimate reservoir permeability and pressure to support reservoir characterization efforts.

By adopting these formation evaluation techniques, exploration teams can develop a comprehensive picture of the subsurface, enabling them to make informed decisions regarding drilling locations, reservoir management strategies, and production optimization.

The integration of these techniques with other reservoir characterization methods ensures a holistic understanding of the reservoir, ultimately leading to successful oil and gas exploration endeavors.
