Using FBA to Estimate SRV Overlap and Well Interference To Drive Well Spacing Decisions

Subsurface Dynamics is an independent engineering and geoscience consulting firm with extensive experience in reservoir characterization, modeling and simulation.  We provide a full spectrum of engineering and geophysical services from data acquisition to final data integration and full field development programs.

Flowback analysis (FBA) has typically been applied on a single-well basis to rapidly diagnose stimulation efficacy shortly after finishing pumping to close the diagnostic gap that exists in the early well life.  Recently we have extended our FBA workflow to include SRV overlap and well interference analysis to help operators evaluate and adjust well spacing based on early-time production data.  Historically, the only reliable methods available to operators early in the well life have been to apply specialized field diagnostics, such as cross-well fiber optics, however these methods are cost-prohibitive to apply to a large number of wells.

Workflow

Estimating SRV overlap on a pad using FBA can be conducted in 3 easy steps:

  1. Conduct FBA on each individual well on a pad to estimate contacted mobile fracture volume (Figure 1a)
  2. Conduct FBA on rolled up pad data (“super well”) to estimate total fracture volume for the pad (Figure 1a)
  3. Compare sum of individual well fracture volumes with the super well (Figure 1b)
Workflow for analyzing SRV Overlap and Well Interference using FBA

Fig. 1 – Workflow for analyzing SRV Overlap and Well Interference using FBA

Based on this analysis there are 2 possible outcomes which are described below and shown graphically in Figure 2.

  1. Super well frac volume is lower than sum of individual wells: SRVs are overlapping and well spacing may be too tight
  2. Super well frac volume is equal to the sum of individual wells: Tip to tip connection or no SRV overlap and well spacing may be too wide

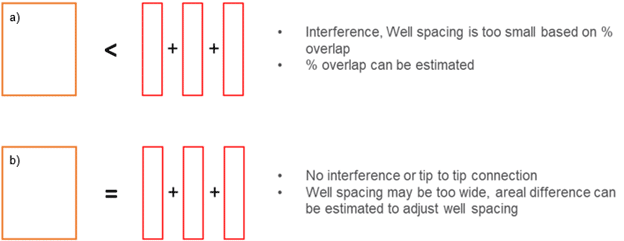

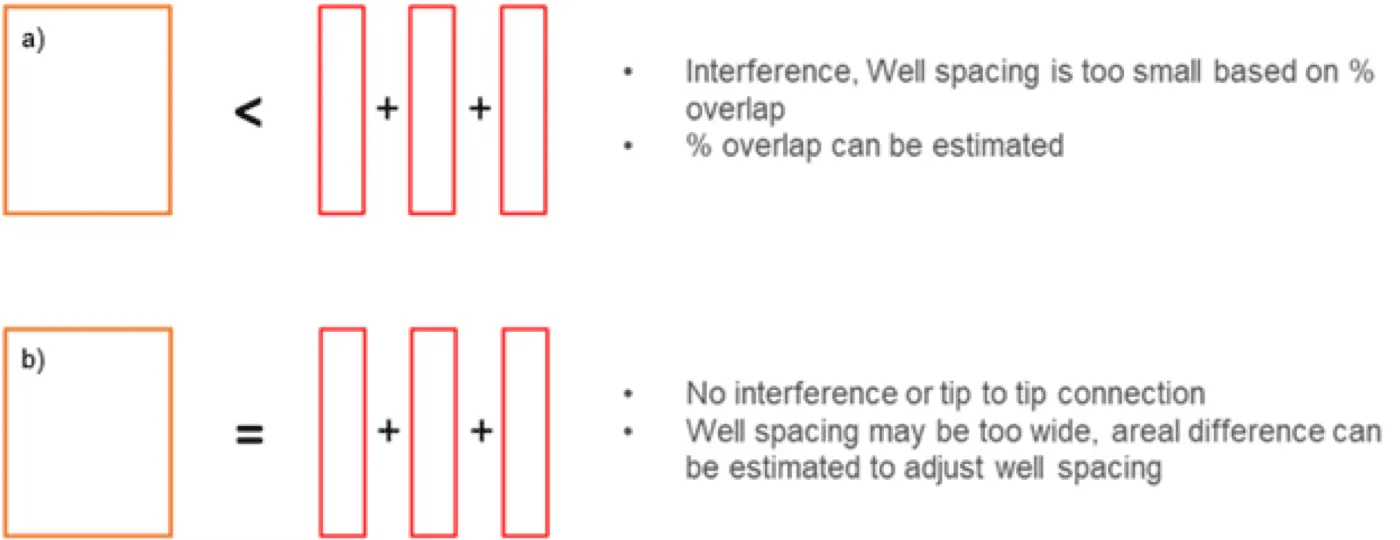

Possible outcomes of FBA SRV Overlap and well Interference Analysis

Fig. 2 – Possible outcomes of FBA SRV Overlap and Well Interference Analysis

Since flowback data is gathered on the vast majority of wells, this analysis can readily be applied on every pad, providing operators with a fantastic new tool  to close the diagnostic gap that exists between the pumping operation and gathering long-term (typically 1 year or more) production data.
